【腾讯云容器服务】超级节点大镜像解决方案
背景
超级节点(Serverless) 的 Pod,默认分配的系统盘大小是 20GB,当容器镜像非常大的时候(比如镜像中包含大的 AI 模型),拉取镜像会因空间不足而失败:
- Warning Failed 50s eklet Failed to pull image "registry.imroc.cc/test/large:latest": rpc error: code = Unknown desc = failed to pull and unpack image "registry.imroc.cc/test/large:latest": failed to copy: write /var/lib/containerd/io.containerd.content.v1.content/ingest/002e585a6f26fd1a69a59a72588300b909c745455c03e6d99e894d03664d47ce/data: no space left on device
针对这种问题,有两种解决方案。
方案一: 使用镜像缓存

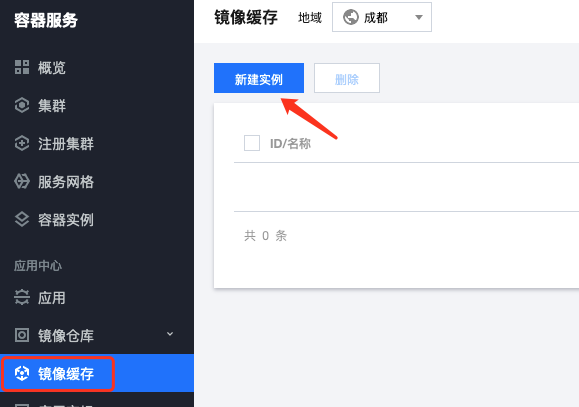

在 镜像缓存页面 新建实例(确保地域与集群所在地域相同):
填入大镜像的镜像地址,以及系统盘大小:
如果是私有镜像,也添加下镜像凭证。
等待实例创建完成:
最后创建工作负载时,使用 eks.tke.cloud.tencent.com/use-image-cache: auto
为 Pod 开启镜像缓存,自动匹配同名镜像的镜像缓存实例,根据快照创建新的磁盘作为 Pod 系统盘,yaml 示例:
- apiVersion: apps/v1
- kind: Deployment
- metadata:
- name: large
- spec:
- replicas: 1
- selector:
- matchLabels:
- app: large
- template:
- metadata:
- labels:
- app: large
- annotations:
- eks.tke.cloud.tencent.com/use-image-cache: auto
- spec:
- nodeSelector:
- node.kubernetes.io/instance-type: eklet
- containers:
- - name: large
- image: registry.imroc.cc/test/large:latest
- command:
- - "sleep"
- - "infinity"
- resources:
- requests:
- cpu: '1'
- memory: '2Gi'
- limits:
- cpu: '1'
- memory: '2Gi'
如果是通过控制台 UI 创建工作负载,可以直接勾选下镜像缓存:
通常使用自动匹配即可,更多详情说明参考官方文档 镜像缓存。
工作负载创建好后,从 Pod 事件可以看到类似 Image cache imc-al38vsrl used. Disk disk-e8crnrhp attached
的信息:
- Events:
- Type Reason Age From Message
- ---- ------ ---- ---- -------
- Normal Scheduled 79s default-scheduler Successfully assigned test/large-77fb4b647f-rpbm9 to eklet-subnet-ahugkjhr-517773
- Normal Starting 78s eklet Starting pod sandbox eks-5epp4l7h
- Normal Starting 42s eklet Sync endpoints
- Normal ImageCacheUsed 42s eklet Image cache imc-al38vsrl used. Disk disk-e8crnrhp attached
- Normal Pulling 41s eklet Pulling image "registry.imroc.cc/test/large:latest"
- Normal Pulled 40s eklet Successfully pulled image "registry.imroc.cc/test/large:latest" in 1.126771639s
- Normal Created 40s eklet Created container large
- Normal Started 40s eklet Started container large
进容器内部也可以看到根路径容量不止 20GB 了:
如果有很多工作负载都使用大镜像,不想每个都配,也可以将注解配置到全局,参考 EKS 全局配置说明。
方案二: 修改系统盘大小
Pod 系统盘默认大小为 20GB,如有需要,可以改大,超过 20GB 的部分将会进行计费。
修改的方式是在 Pod 上加 eks.tke.cloud.tencent.com/root-cbs-size: “50”
这样的注解,示例:
- apiVersion: apps/v1
- kind: Deployment
- metadata:
- name: nginx
- spec:
- replicas: 1
- selector:
- matchLabels:
- app: nginx
- template:
- metadata:
- labels:
- app: nginx
- annotations:
- eks.tke.cloud.tencent.com/root-cbs-size: "50"
- spec:
- containers:
- - name: nginx
- image: nginx
总结
针对大镜像的场景,可以使用本文介绍的两种解决方案:镜像缓存和自定义系统盘大小。
使用镜像缓存的优势在于,可以加速大镜像 Pod 的启动;自定义系统盘大小的优势在于,不需要创建镜像缓存实例,比较简单方便。可以根据自身需求选取合适的方案
