背景：

要安装一系列的工具，如：jenkins spinnaker gitlab。账号系统是一件烦人的事情。前两年自己也试过openladap这样的统一账号管理认证。现在就想再用一下.把几个软件的账户系统整合一下（主要是想上spinnaker了）。搭建方式基本参照：https://mutoulazy.github.io/2021/04/01/kubernetes/openLDAP/#%E5%9C%A8k8s%E4%B8%AD%E9%83%A8%E7%BD%B2。不过这个哥们写的配置文件也比较乱，起码的pv,pvc应该先创建吧？yaml顺序整的杂七乱八的都是创建了服务后导出的.....，另外还有这里两个的可以参考：Kubernetes - - k8s - v1.12.3 OpenLDAP统一认证 kubernetes实战(十一)：k8s使用openLDAP统一认证

反正就结合这几个搞一下吧！

kubernetes 搭建openLDAP

1.创建pvc

默认存储cbs，直接使用了腾讯云的cbs块存储（最小10G的步长也是10G）

cat <<EOF > pvc.yaml
apiVersion: v1
kind: PersistentVolumeClaim
metadata:
  name: ldap-data-pvc
  namespace: kube-ops
spec:
  accessModes:
  - ReadWriteOnce
  resources:
    requests:
      storage: 10Gi
  storageClassName: cbs
---
apiVersion: v1
kind: PersistentVolumeClaim
metadata:
  name: ldap-config-pvc
  namespace: kube-ops
spec:
  accessModes:
  - ReadWriteOnce
  resources:
    requests:
      storage: 10Gi
  storageClassName: cbs
EOF

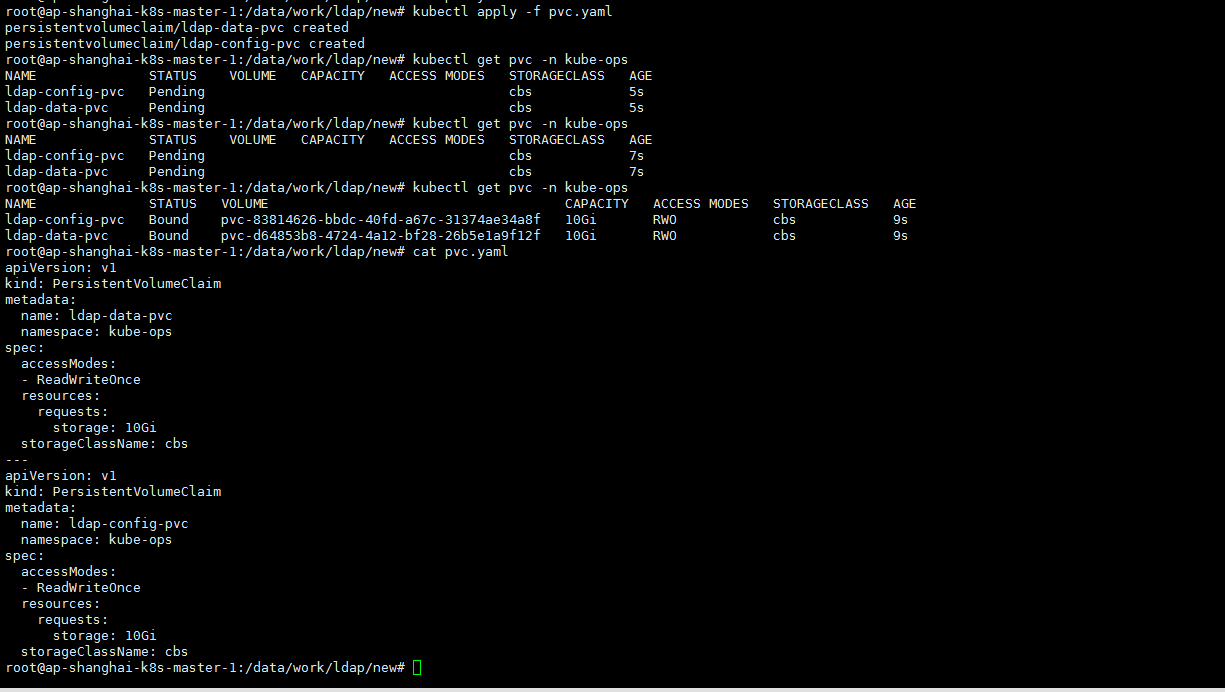

kubectl apply -f pvc.yaml

3.创建phpldap deployments svc服务

cat <<EOF >  ldap-phpldapadmin.yaml
kind: Deployment
apiVersion: apps/v1
metadata:
  name: ldap-phpldapadmin
  namespace: kube-ops
  labels:
    app: ldap-phpldapadmin
  annotations:
    app.kubernetes.io/alias-name: LDAP
    app.kubernetes.io/description: LDAP在线工具
spec:
  replicas: 1
  selector:
    matchLabels:
      app: ldap-phpldapadmin
  template:
    metadata:
      labels:
        app: ldap-phpldapadmin
    spec:
      containers:
        - name: phpldapadmin
          image: 'osixia/phpldapadmin:stable'
          ports:
            - name: tcp-80
              containerPort: 80
              protocol: TCP
          env:
            - name: PHPLDAPADMIN_HTTPS
              value: 'false'
            - name: PHPLDAPADMIN_LDAP_HOSTS
              value: openldap-svc
          resources:
            limits:
              cpu: 500m
              memory: 500Mi
            requests:
              cpu: 10m
              memory: 10Mi
---
apiVersion: v1
kind: Service
metadata:
  name: ldap-phpldapadmin-svc
  namespace: kube-ops
  labels:
    app: ldap-phpldapadmin-svc
spec:
  ports:
  - name: tcp-80
    port: 80
    protocol: TCP
    targetPort: 80
  selector:
    app: ldap-phpldapadmin
EOF
kubectl apply -f ldap-phpldapadmin.yaml
展开


kubectl get svc -n kube-ops


4. 创建ingress 代理

cat <<EOF >  traefik-ldap.yaml
apiVersion: networking.k8s.io/v1
kind: Ingress
metadata:
  name: ldap-ui
  namespace: kube-ops
  annotations:
    kubernetes.io/ingress.class: traefik
    traefik.ingress.kubernetes.io/router.entrypoints: web
spec:
  rules:
  - host: ldap.xxx.com
    http:
      paths:
      - pathType: Prefix
        path: /
        backend:
          service:
            name: ldap-phpldapadmin-svc
            port:
              number: 80
EOF
kubectl apply -f traefik-ldap.yaml
