云上消息队列Ckafka它香不香？
导语：对于企业来说，使用消息队列kafka主要要求的是高可用、扩展性、易维护、重要的是省钱。
一、先购买一个实例
1、供上购买链接：https://buy.cloud.tencent.com/ckafka?rid=1

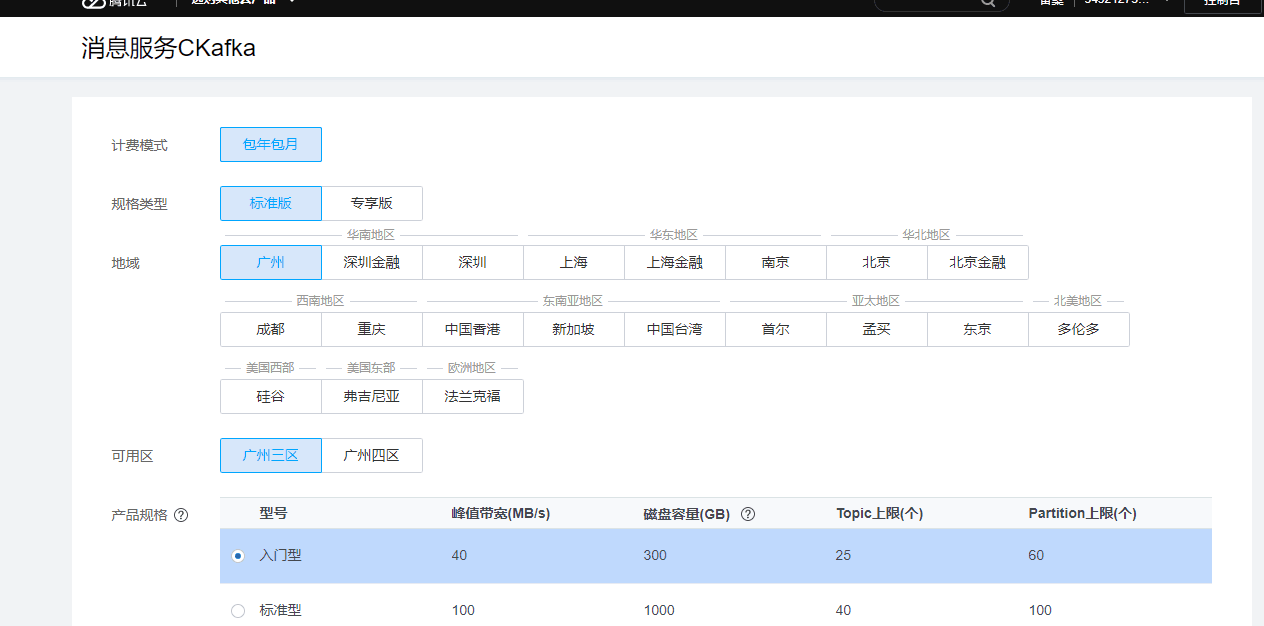

2、先创建一个Ckafka实例
不同规格实例，有不同数量的topic和partition
这里可以选择自己业务所在私有网络，不过Ckafka提供多种接入方式，可以满足不同环境使用Ckafka
这里看一下，价格也是很便宜，还不到一台4核8G的CVM的价格，一台CVM还只能部署一个单机版的kafka服务端，没有高可用保障。
这是一台4核8G的CVM的价格
言归正传,创建好的ckafka实例就是这样的，要给它取个实例名称，跟业务关联，方便后期识别管理
ckafka也提供了多种接入方式，满足不场景的使用，开发、测试、生产环境都可以使用，并有保障安全的方式。
这里创建一个公网域名接入，用来开发测试，生产业务建议使用内网
创建一个topic
创建一个用户名，用于公网域名用户名认证使用
配置ACL策略，限制那个用户可以访问这个topic，保障线上ckafka的安全，这样我们就可以通过公网域名在本地访问线上的ckafka了，一起来测试一下。
二、使用IntelliJ IDEA搭建Maven工程
好用的工具就自己下载吧：
https://www.jetbrains.com/products.html 安装JDK、Maven、nexus我就不教了，看前面的教程
先来创建一个工程
选择maven工程
取个工程名
pom.xml，仔细研究吧
三、编写生产者代码：Producer.java
import org.apache.kafka.clients.producer.Callback;
import org.apache.kafka.clients.producer.KafkaProducer;
import org.apache.kafka.clients.producer.ProducerRecord;
import org.apache.kafka.clients.producer.RecordMetadata;
import java.util.Properties;
public class Producer {
public static void main(String[] args) {
Properties props = new Properties();
props.put("bootstrap.servers", "ckafka-in5yxxxx.ap-guangzhou.ckafka.tencentcloudmq.com:6002");
props.put("security.protocol", "SASL_PLAINTEXT");
props.put("sasl.mechanism", "PLAIN");
props.put("session.timeout.ms", 30000);
props.put("key.serializer","org.apache.kafka.common.serialization.StringSerializer");
props.put("value.serializer","org.apache.kafka.common.serialization.StringSerializer");
props.put("acks", "1");
props.put("retries", 3);
props.put("batch.size", 232840);
props.put("linger.ms", 10);
props.put("buffer.memory", 33554432);
props.put("max.block.ms", 3000);
props.put("sasl.jaas.config", "org.apache.kafka.common.security.plain.PlainLoginModule required username=\\"ckafka-in5xxxxf#Jensen\\" password=\\"xxxx\\";");
Producer.asynSendRecord(props);
}
//异步发送消息，是不是有点浪漫
public static void asynSendRecord(Properties props){
KafkaProducer<String, String> producer = new KafkaProducer<String, String>(props);
for (int i = 0; i < 100; i++) {
ProducerRecord<String,String> record=new ProducerRecord<String,String>("jasen", Integer.toString(i), Integer.toString(i));
System.out.println("record:"+record.value());
producer.send(record, new Callback() {
public void onCompletion(RecordMetadata recordMetadata, Exception e) {
if (e == null) {
System.out.println("消息发送:"+"offset:"+recordMetadata.offset()+" timestamp："+recordMetadata.timestamp()+" topic:"+recordMetadata.topic()+" partition:"+recordMetadata.partition());
System.out.println("消息发送成功");
} else {
System.out.println(String.format("消息发送失败: %s", e.getMessage()));
}
}
});
}
producer.close();
}
}看看生产者的日志：
C:\\Program Files\\Java\\jdk1.8.0_161\\bin\\java.exe" "-javaagent:D:\\program files\\JetBrains\\IntelliJ IDEA Community Edition 2019.3.3\\lib\\idea_rt.jar=51023:D:\\program files\\JetBrains\\IntelliJ IDEA Community Edition 2019.3.3\\bin" -Dfile.encoding=UTF-8 -classpath "C:\\Program Files\\Java\\jdk1.8.0_161\\jre\\lib\\charsets.jar;C:\\Program Files\\Java\\jdk1.8.0_161\\jre\\lib\\deploy.jar;C:\\Program Files\\Java\\jdk1.8.0_161\\jre\\lib\\ext\\access-bridge-64.jar;C:\\Program Files\\Java\\jdk1.8.0_161\\jre\\lib\\ext\\cldrdata.jar;C:\\Program Files\\Java\\jdk1.8.0_161\\jre\\lib\\ext\\dnsns.jar;C:\\Program Files\\Java\\jdk1.8.0_161\\jre\\lib\\ext\\jaccess.jar;C:\\Program Files\\Java\\jdk1.8.0_161\\jre\\lib\\ext\\jfxrt.jar;C:\\Program Files\\Java\\jdk1.8.0_161\\jre\\lib\\ext\\localedata.jar;C:\\Program Files\\Java\\jdk1.8.0_161\\jre\\lib\\ext\\nashorn.jar;C:\\Program Files\\Java\\jdk1.8.0_161\\jre\\lib\\ext\\sunec.jar;C:\\Program Files\\Java\\jdk1.8.0_161\\jre\\lib\\ext\\sunjce_provider.jar;C:\\Program Files\\Java\\jdk1.8.0_161\\jre\\lib\\ext\\sunmscapi.jar;C:\\Program Files\\Java\\jdk1.8.0_161\\jre\\lib\\ext\\sunpkcs11.jar;C:\\Program Files\\Java\\jdk1.8.0_161\\jre\\lib\\ext\\zipfs.jar;C:\\Program Files\\Java\\jdk1.8.0_161\\jre\\lib\\javaws.jar;C:\\Program Files\\Java\\jdk1.8.0_161\\jre\\lib\\jce.jar;C:\\Program Files\\Java\\jdk1.8.0_161\\jre\\lib\\jfr.jar;C:\\Program Files\\Java\\jdk1.8.0_161\\jre\\lib\\jfxswt.jar;C:\\Program Files\\Java\\jdk1.8.0_161\\jre\\lib\\jsse.jar;C:\\Program Files\\Java\\jdk1.8.0_161\\jre\\lib\\management-agent.jar;C:\\Program Files\\Java\\jdk1.8.0_161\\jre\\lib\\plugin.jar;C:\\Program Files\\Java\\jdk1.8.0_161\\jre\\lib\\resources.jar;C:\\Program Files\\Java\\jdk1.8.0_161\\jre\\lib\\rt.jar;D:\\programming\\kafka-demo2\\target\\test-classes;C:\\Users\\Jensen\\.m2\\repository\\org\\apache\\kafka\\kafka-clients\\1.0.2\\kafka-clients-1.0.2.jar;C:\\Users\\Jensen\\.m2\\repository\\org\\lz4\\lz4-java\\1.4\\lz4-java-1.4.jar;C:\\Users\\Jensen\\.m2\\repository\\org\\xerial\\snappy\\snappy-java\\1.1.4\\snappy-java-1.1.4.jar;C:\\Users\\Jensen\\.m2\\repository\\org\\slf4j\\slf4j-api\\1.7.25\\slf4j-api-1.7.25.jar;C:\\Users\\Jensen\\.m2\\repository\\org\\slf4j\\slf4j-simple\\1.7.2\\slf4j-simple-1.7.2.jar" Producer
[main] INFO org.apache.kafka.clients.producer.ProducerConfig - ProducerConfig values:
acks = 1
batch.size = 232840
bootstrap.servers = [ckafka-in5yxxxx.ap-guangzhou.ckafka.tencentcloudmq.com:6002]
buffer.memory = 33554432
client.id =
compression.type = none
connections.max.idle.ms = 540000
enable.idempotence = false
interceptor.classes = null
key.serializer = class org.apache.kafka.common.serialization.StringSerializer
linger.ms = 10
max.block.ms = 3000
max.in.flight.requests.per.connection = 5
max.request.size = 1048576
metadata.max.age.ms = 300000
metric.reporters = []
metrics.num.samples = 2
metrics.recording.level = INFO
metrics.sample.window.ms = 30000
partitioner.class = class org.apache.kafka.clients.producer.internals.DefaultPartitioner
receive.buffer.bytes = 32768
reconnect.backoff.max.ms = 1000
reconnect.backoff.ms = 50
request.timeout.ms = 30000
retries = 3
retry.backoff.ms = 100
sasl.jaas.config = [hidden]
sasl.kerberos.kinit.cmd = /usr/bin/kinit
sasl.kerberos.min.time.before.relogin = 60000
sasl.kerberos.service.name = null
sasl.kerberos.ticket.renew.jitter = 0.05
sasl.kerberos.ticket.renew.window.factor = 0.8
sasl.mechanism = PLAIN
security.protocol = SASL_PLAINTEXT
send.buffer.bytes = 131072
ssl.cipher.suites = null
ssl.enabled.protocols = [TLSv1.2, TLSv1.1, TLSv1]
ssl.endpoint.identification.algorithm = null
ssl.key.password = null
ssl.keymanager.algorithm = SunX509
ssl.keystore.location = null
ssl.keystore.password = null
ssl.keystore.type = JKS
ssl.protocol = TLS
ssl.provider = null
ssl.secure.random.implementation = null
ssl.trustmanager.algorithm = PKIX
ssl.truststore.location = null
ssl.truststore.password = null
ssl.truststore.type = JKS
transaction.timeout.ms = 60000
transactional.id = null
value.serializer = class org.apache.kafka.common.serialization.StringSerializer
[main] INFO org.apache.kafka.common.security.authenticator.AbstractLogin - Successfully logged in.
[main] WARN org.apache.kafka.clients.producer.ProducerConfig - The configuration 'session.timeout.ms' was supplied but isn't a known config.
[main] INFO org.apache.kafka.common.utils.AppInfoParser - Kafka version : 1.0.2
[main] INFO org.apache.kafka.common.utils.AppInfoParser - Kafka commitId : 2a121f7b1d402825
record:0
record:1
record:2
record:3
record:4
record:5
record:6
record:7
record:8
record:9
record:10
record:11
。。。。。
record:90
record:91
record:92
record:93
record:94
record:95
record:96
record:97
record:98
record:99
[main] INFO org.apache.kafka.clients.producer.KafkaProducer - [Producer clientId=producer-1] Closing the Kafka producer with timeoutMillis = 9223372036854775807 ms.
消息发送:offset:1382 timestamp：1592221545987 topic:jasen partition:0
消息发送成功
消息发送:offset:1383 timestamp：1592221546002 topic:jasen partition:0
消息发送成功
消息发送:offset:1384 timestamp：1592221546003 topic:jasen partition:0
消息发送成功
消息发送:offset:1385 timestamp：1592221546003 topic:jasen partition:0
消息发送成功
消息发送:offset:1386 timestamp：1592221546003 topic:jasen partition:0
消息发送成功
消息发送:offset:1387 timestamp：1592221546003 topic:jasen partition:0
消息发送成功
消息发送:offset:1388 timestamp：1592221546003 topic:jasen partition:0
消息发送成功
消息发送:offset:1389 timestamp：1592221546003 topic:jasen partition:0
消息发送成功
消息发送:offset:1390 timestamp：1592221546004 topic:jasen partition:0
消息发送成功
消息发送:offset:1391 timestamp：1592221546004 topic:jasen partition:0
消息发送成功
消息发送:offset:1392 timestamp：1592221546004 topic:jasen partition:0
消息发送成功
消息发送:offset:1393 timestamp：1592221546004 topic:jasen partition:0
消息发送成功
消息发送:offset:1394 timestamp：1592221546004 topic:jasen partition:0
消息发送成功
消息发送:offset:1395 timestamp：1592221546004 topic:jasen partition:0
消息发送成功
消息发送:offset:1396 timestamp：1592221546005 topic:jasen partition:0
消息发送成功
消息发送:offset:1397 timestamp：1592221546005 topic:jasen partition:0
消息发送成功
......
消息发送:offset:1476 timestamp：1592221546014 topic:jasen partition:0
消息发送成功
消息发送:offset:1477 timestamp：1592221546014 topic:jasen partition:0
消息发送成功
消息发送:offset:1478 timestamp：1592221546014 topic:jasen partition:0
消息发送成功
消息发送:offset:1479 timestamp：1592221546014 topic:jasen partition:0
消息发送成功
消息发送:offset:1480 timestamp：1592221546014 topic:jasen partition:0
消息发送成功
消息发送:offset:1481 timestamp：1592221546014 topic:jasen partition:0
消息发送成功
Process finished with exit code 0四、写个消费者的代码--Consumer.java
import org.apache.kafka.clients.consumer.ConsumerRecord;
import org.apache.kafka.clients.consumer.ConsumerRecords;
import org.apache.kafka.clients.consumer.KafkaConsumer;
import java.util.Collections;
import java.util.Properties;
public class Consumer {
public static void main(String[] args) {
String topicName = "jasen";
String groupId = "test-group";
Properties props = new Properties();
props.put("bootstrap.servers", "ckafka-in5yxxxx.ap-guangzhou.ckafka.tencentcloudmq.com:6002");
props.put("group.id", groupId);
props.put("security.protocol", "SASL_PLAINTEXT");
props.put("sasl.mechanism", "PLAIN");
props.put("session.timeout.ms", 30000);
props.put("enable.auto.commit", "true");
props.put("auto.commit.interval.ms", "1000");
props.put("auto.offset.reset", "earliest");
props.put("key.deserializer","org.apache.kafka.common.serialization.StringDeserializer");
props.put("value.deserializer","org.apache.kafka.common.serialization.StringDeserializer");
props.put("sasl.jaas.config", "org.apache.kafka.common.security.plain.PlainLoginModule required username=\\"ckafka-in5yxxxx#Jensen\\" password=\\"xxxx\\";");
KafkaConsumer<String, String> consumer = new KafkaConsumer<String, String>(props);
// 订阅主题
consumer.subscribe(Collections.singletonList(topicName));
try {
while (true) {
ConsumerRecords<String, String> records = consumer.poll(1000);
for (ConsumerRecord<String, String> record : records) {
System.out.printf("offset = %d, key = %s, value = %s%n", record.offset(), record.key(), record.value());
}
}
} finally {
consumer.close();
}
}
}看是否可以消费到上面生产的100条消息
"C:\\Program Files\\Java\\jdk1.8.0_161\\bin\\java.exe" "-javaagent:D:\\program files\\JetBrains\\IntelliJ IDEA Community Edition 2019.3.3\\lib\\idea_rt.jar=51176:D:\\program files\\JetBrains\\IntelliJ IDEA Community Edition 2019.3.3\\bin" -Dfile.encoding=UTF-8 -classpath "C:\\Program Files\\Java\\jdk1.8.0_161\\jre\\lib\\charsets.jar;C:\\Program Files\\Java\\jdk1.8.0_161\\jre\\lib\\deploy.jar;C:\\Program Files\\Java\\jdk1.8.0_161\\jre\\lib\\ext\\access-bridge-64.jar;C:\\Program Files\\Java\\jdk1.8.0_161\\jre\\lib\\ext\\cldrdata.jar;C:\\Program Files\\Java\\jdk1.8.0_161\\jre\\lib\\ext\\dnsns.jar;C:\\Program Files\\Java\\jdk1.8.0_161\\jre\\lib\\ext\\jaccess.jar;C:\\Program Files\\Java\\jdk1.8.0_161\\jre\\lib\\ext\\jfxrt.jar;C:\\Program Files\\Java\\jdk1.8.0_161\\jre\\lib\\ext\\localedata.jar;C:\\Program Files\\Java\\jdk1.8.0_161\\jre\\lib\\ext\\nashorn.jar;C:\\Program Files\\Java\\jdk1.8.0_161\\jre\\lib\\ext\\sunec.jar;C:\\Program Files\\Java\\jdk1.8.0_161\\jre\\lib\\ext\\sunjce_provider.jar;C:\\Program Files\\Java\\jdk1.8.0_161\\jre\\lib\\ext\\sunmscapi.jar;C:\\Program Files\\Java\\jdk1.8.0_161\\jre\\lib\\ext\\sunpkcs11.jar;C:\\Program Files\\Java\\jdk1.8.0_161\\jre\\lib\\ext\\zipfs.jar;C:\\Program Files\\Java\\jdk1.8.0_161\\jre\\lib\\javaws.jar;C:\\Program Files\\Java\\jdk1.8.0_161\\jre\\lib\\jce.jar;C:\\Program Files\\Java\\jdk1.8.0_161\\jre\\lib\\jfr.jar;C:\\Program Files\\Java\\jdk1.8.0_161\\jre\\lib\\jfxswt.jar;C:\\Program Files\\Java\\jdk1.8.0_161\\jre\\lib\\jsse.jar;C:\\Program Files\\Java\\jdk1.8.0_161\\jre\\lib\\management-agent.jar;C:\\Program Files\\Java\\jdk1.8.0_161\\jre\\lib\\plugin.jar;C:\\Program Files\\Java\\jdk1.8.0_161\\jre\\lib\\resources.jar;C:\\Program Files\\Java\\jdk1.8.0_161\\jre\\lib\\rt.jar;D:\\programming\\kafka-demo2\\target\\test-classes;C:\\Users\\Jensen\\.m2\\repository\\org\\apache\\kafka\\kafka-clients\\1.0.2\\kafka-clients-1.0.2.jar;C:\\Users\\Jensen\\.m2\\repository\\org\\lz4\\lz4-java\\1.4\\lz4-java-1.4.jar;C:\\Users\\Jensen\\.m2\\repository\\org\\xerial\\snappy\\snappy-java\\1.1.4\\snappy-java-1.1.4.jar;C:\\Users\\Jensen\\.m2\\repository\\org\\slf4j\\slf4j-api\\1.7.25\\slf4j-api-1.7.25.jar;C:\\Users\\Jensen\\.m2\\repository\\org\\slf4j\\slf4j-simple\\1.7.2\\slf4j-simple-1.7.2.jar" Consumer
[main] INFO org.apache.kafka.clients.consumer.ConsumerConfig - ConsumerConfig values:
auto.commit.interval.ms = 1000
auto.offset.reset = earliest
bootstrap.servers = [ckafka-in5yxxxx.ap-guangzhou.ckafka.tencentcloudmq.com:6002]
check.crcs = true
client.id =
connections.max.idle.ms = 540000
enable.auto.commit = true
exclude.internal.topics = true
fetch.max.bytes = 52428800
fetch.max.wait.ms = 500
fetch.min.bytes = 1
group.id = test-group
heartbeat.interval.ms = 3000
interceptor.classes = null
internal.leave.group.on.close = true
isolation.level = read_uncommitted
key.deserializer = class org.apache.kafka.common.serialization.StringDeserializer
max.partition.fetch.bytes = 1048576
max.poll.interval.ms = 300000
max.poll.records = 500
metadata.max.age.ms = 300000
metric.reporters = []
metrics.num.samples = 2
metrics.recording.level = INFO
metrics.sample.window.ms = 30000
partition.assignment.strategy = [class org.apache.kafka.clients.consumer.RangeAssignor]
receive.buffer.bytes = 65536
reconnect.backoff.max.ms = 1000
reconnect.backoff.ms = 50
request.timeout.ms = 305000
retry.backoff.ms = 100
sasl.jaas.config = [hidden]
sasl.kerberos.kinit.cmd = /usr/bin/kinit
sasl.kerberos.min.time.before.relogin = 60000
sasl.kerberos.service.name = null
sasl.kerberos.ticket.renew.jitter = 0.05
sasl.kerberos.ticket.renew.window.factor = 0.8
sasl.mechanism = PLAIN
security.protocol = SASL_PLAINTEXT
send.buffer.bytes = 131072
session.timeout.ms = 30000
ssl.cipher.suites = null
ssl.enabled.protocols = [TLSv1.2, TLSv1.1, TLSv1]
ssl.endpoint.identification.algorithm = null
ssl.key.password = null
ssl.keymanager.algorithm = SunX509
ssl.keystore.location = null
ssl.keystore.password = null
ssl.keystore.type = JKS
ssl.protocol = TLS
ssl.provider = null
ssl.secure.random.implementation = null
ssl.trustmanager.algorithm = PKIX
ssl.truststore.location = null
ssl.truststore.password = null
ssl.truststore.type = JKS
value.deserializer = class org.apache.kafka.common.serialization.StringDeserializer
[main] INFO org.apache.kafka.common.security.authenticator.AbstractLogin - Successfully logged in.
[main] INFO org.apache.kafka.common.utils.AppInfoParser - Kafka version : 1.0.2
[main] INFO org.apache.kafka.common.utils.AppInfoParser - Kafka commitId : 2a121f7b1d402825
[main] INFO org.apache.kafka.clients.consumer.internals.AbstractCoordinator - [Consumer clientId=consumer-1, groupId=test-group] Discovered group coordinator 111.230.124.164:18006 (id: 2147472928 rack: null)
[main] INFO org.apache.kafka.clients.consumer.internals.ConsumerCoordinator - [Consumer clientId=consumer-1, groupId=test-group] Revoking previously assigned partitions []
[main] INFO org.apache.kafka.clients.consumer.internals.AbstractCoordinator - [Consumer clientId=consumer-1, groupId=test-group] (Re-)joining group
[main] INFO org.apache.kafka.clients.consumer.internals.AbstractCoordinator - [Consumer clientId=consumer-1, groupId=test-group] Successfully joined group with generation 9
[main] INFO org.apache.kafka.clients.consumer.internals.ConsumerCoordinator - [Consumer clientId=consumer-1, groupId=test-group] Setting newly assigned partitions [jasen-0]
[main] INFO org.apache.kafka.clients.consumer.internals.Fetcher - [Consumer clientId=consumer-1, groupId=test-group] Fetch offset 942 is out of range for partition jasen-0, resetting offset
offset = 1382, key = 0, value = 0
offset = 1383, key = 1, value = 1
offset = 1384, key = 2, value = 2
offset = 1385, key = 3, value = 3
offset = 1386, key = 4, value = 4
offset = 1387, key = 5, value = 5
offset = 1388, key = 6, value = 6
offset = 1389, key = 7, value = 7
offset = 1390, key = 8, value = 8
offset = 1391, key = 9, value = 9
offset = 1392, key = 10, value = 10
offset = 1393, key = 11, value = 11
offset = 1394, key = 12, value = 12
offset = 1395, key = 13, value = 13
offset = 1396, key = 14, value = 14
offset = 1397, key = 15, value = 15
offset = 1398, key = 16, value = 16
。。。。。就是一百条数据，绝对没少
offset = 1464, key = 82, value = 82
offset = 1465, key = 83, value = 83
offset = 1466, key = 84, value = 84
offset = 1467, key = 85, value = 85
offset = 1468, key = 86, value = 86
offset = 1469, key = 87, value = 87
offset = 1470, key = 88, value = 88
offset = 1471, key = 89, value = 89
offset = 1472, key = 90, value = 90
offset = 1473, key = 91, value = 91
offset = 1474, key = 92, value = 92
offset = 1475, key = 93, value = 93
offset = 1476, key = 94, value = 94
offset = 1477, key = 95, value = 95
offset = 1478, key = 96, value = 96
offset = 1479, key = 97, value = 97
offset = 1480, key = 98, value = 98
offset = 1481, key = 99, value = 99总结一下：
总体来说怎么样，香不香？还得用了才知道吧，不信你自己搭建一 个kafka集群吧，zookeeper集群也不能少，万一要扩容怎么办？ 对于企业来说，一个是要求高可用、扩展性、易维护、重要的是省钱。
THE END
0
二维码
海报
云上消息队列Ckafka它香不香？
导语：对于企业来说，使用消息队列kafka主要要求的是高可用、扩展性、易维护、重要的是省钱。
